Made of high-quality alloy tool steel or high-speed steel, it has undergone special heat treatment process and has extremely high hardness and wear resistance. Mainly used for straight-line cutting of scrap steel
1.2746 steel is an alloy cold work tool steel. It is a widely used material in various industrial applications. This steel has high hardness and can withstand challenging conditions such as wear, impact and high temperature.
Customized :
YESApplication :
SCRAP RECYCLINGOrder(MOQ) :
1 pieceLead Time :
30 DAYSShipping Port :
SHANGHAIProduct Origin :
CHINASCRAP METAL SHEAR BLADE
Features
precision in every cut
Guillotine Gantry Shear Blade Mainly used for straight-line shearing of metal sheets：
High strength and high wear resistance: Made of high-quality alloy tool steel or high-speed steel, and after special heat treatment process, the blade has extremely high hardness and wear resistance, and the service life is extended.
High precision: Precision grinding ensures the dimensional accuracy and shape and position tolerance of the blade, ensuring the straightness and cutting quality of the sheared plate.
Multiple specifications available: Blades of different lengths, thicknesses, and cutting edge angles can be customized according to customer needs to meet the shearing needs of plates of different thicknesses and materials.
Easy installation: Reasonable design, easy and quick installation, easy for users to replace and maintain
Choose the Demolition Shear Blade to experience efficient and precise cutting performance!

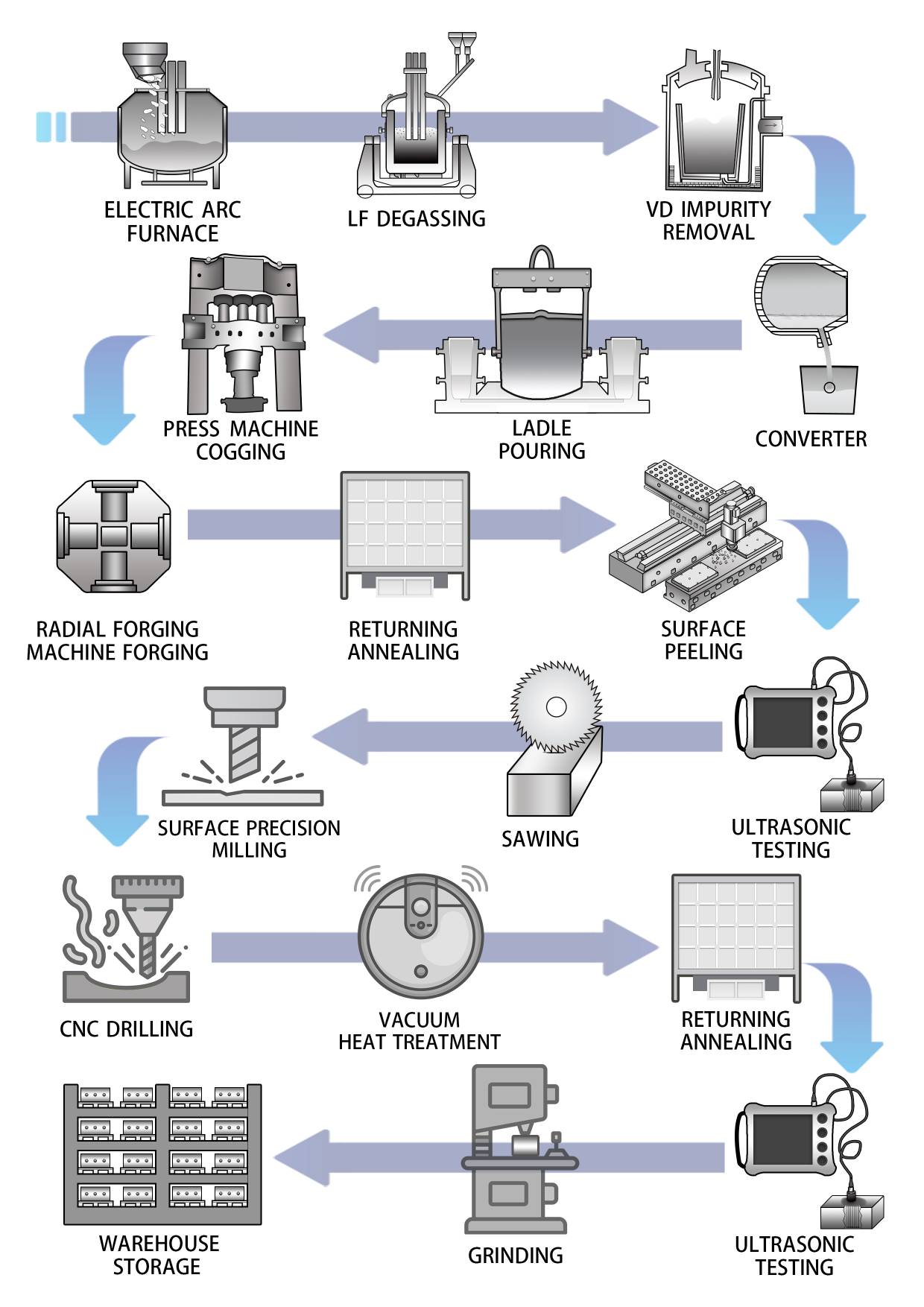

Working process
Parameter
1.2746 steel is an alloy cold work tool steel. It is a widely used material in various industrial applications. This steel has high hardness and can withstand challenging conditions such as wear, impact and high temperature.
Application
>Mold Manufacturing: Plastic molds, die-casting molds, etc
>Cutting Tools: High-wear-resistant tools, punches, etc.
>Wear-Resistant Parts: Bearings, gears, and other high-load components.
Chemical Composition
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | V |
| 1.2746 | 0.45 | 0.24 | 0.65 | 0.01 | 0.005 | 1.5 | 4.0 | 0.8 | 0.5 |
Macroscopic inspection
>Low Magnification
| General Porosity(Grade) | General Porosity(Grade) | Chain Segregation(Grade) | Edge Spotted Porosity(Grade) | General Spotted Porosity(Grade) |
| 1.0 | 1.0 | 0.5 | 0 | 0 |
Mechanical Propertiesa
>Tensile Test Temperature: Room Temperature Test Direction: Longitudinal
| Yield StrengthRp0.2 (MPa) | Tensile Strength Rm (MPa) | Elongation After fractureA (%) | Reduction Of AreaZ (%) |
| 1412 | 1670 | 11.5 | 38 |
>lmpact Test Temperature: Room Temperature Test Direction: Longitudinal lmpact Depth:2mm
| Lmpact Toughness Value aKu2(J/cm²) | |
| 34 | 29 |
Details
Technology
1.Where is this blade commonly used?
It is widely used in metal recycling plants, scrap yards, demolition sites, and steel processing factories.
2.Can it cut stainless steel and hardened steel?
Yes, but for high-hardness materials, a specialized high-strength blade is recommended.
3.How does a Crocodile Shear Blade compare to a Guillotine Shear Blade?
Crocodile Shear Blades are designed for heavy-duty scrap cutting, while Guillotine Shear Blades are used for precise sheet metal cutting.
Made of high-quality alloy tool steel or high-speed steel, it has undergone special heat treatment process and has extremely high hardness and wear resistance. Mainly used for straight-line cutting of scrap steel 1.2746 steel is an alloy cold work tool steel. It is a widely used material in various industrial applications. This steel has high hardness and can withstand challenging conditions such as wear, impact and high temperature.
Details
CL60 is a high-strength wheel steel with excellent fatigue resistance, wear resistance and impact toughness, which can meet the stringent requirements of high-speed and heavy-load railways. Made of high-quality alloy tool steel or high-speed steel, it has undergone special heat treatment process and has extremely high hardness and wear resistance. Mainly used for straight-line cutting of scrap steel
Details
